Shipping Containers

We’ve got cargo options to suit your requirements.

A large variety of goods require specific atmosphere, temperature or humidity level to be shipped. For such type of sensitive cargo, the slightest detail can make all the difference.

We are able to offer a full range of options for containerised cargoes including:

40ft High Cube Reefer

40ft High Cube Dry Van

20ft Dry Van

40ft Open Top

40ft Flat Rack

Previous
Next

The fastest service to and from the Caribbean.

0
Nautical miles from Portsmouth to Barbados
0
Port calls in 2020
0 m
Bananas on Geest service every week
0 %
Same-day schedule reliability
0
population of St Kitts
0
Average daily max temperature (Celsius) in Barbados

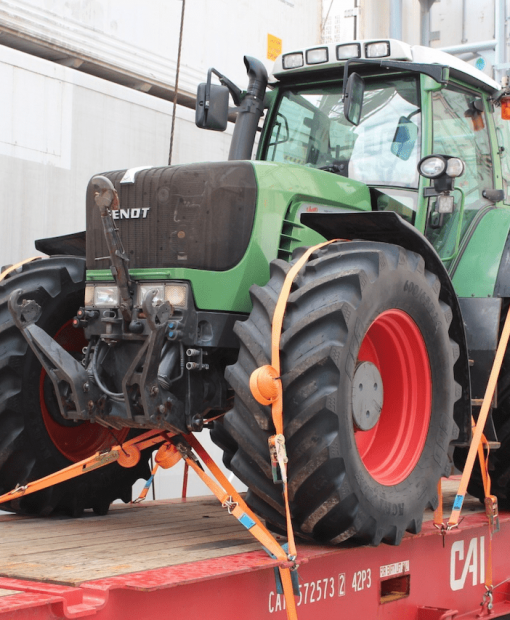

tractor.min

Why we’re chosen time and time again.

We are a people business and we spend time to get to know our customers and their needs.

View our services

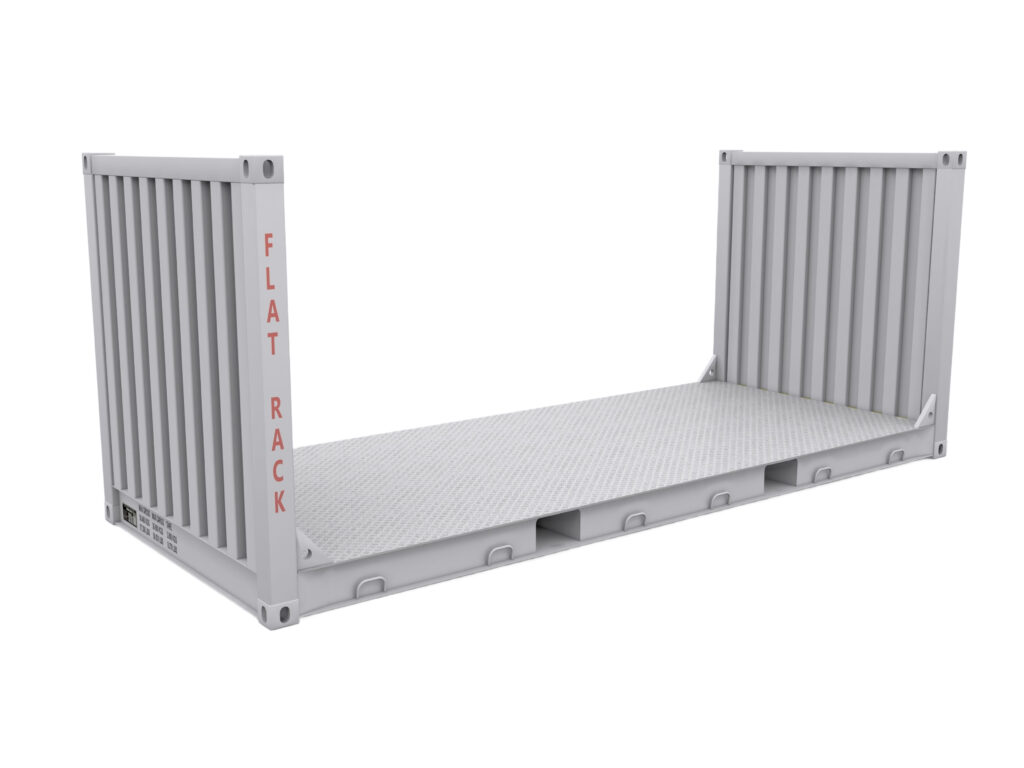

40ft Flat Rack

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length (Base Bottom Casting) – 12,192 mm

Width (Base Bottom Casting) – 2438 mm

Height (End Frame Erected) – 2591 mm

Deck Height (adjacent To Corner Post) – 362 mm

Bottom Side Rail Camber Height (At Midpoint, Unladen, Unstacked) – 50 mm

Stack Height (20′:7 Folded; 40′:4 Folded) – 2591 mm

Length (Between End Panels) – 12,182 mm

Length (Between Corner Posts Inner) – 12,054 mm

Length (Between Corner Posts At Floor) – 11,630 mm

Width (Over Bottom Side Rail In Center) – 2374 mm

Width (Between Corner Posts) – 2210 mm

Height (Side Rail Adjacent To Post To Top Casting) – 1959 mm

Tare Weight – 5160 kg

Maximum Gross Weight – 52,500 kg

Maximum Payload Weight – 47,370 kg

40ft Platform Flat Rack

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 40ft 0in/12.192m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

Length – 40ft 0in/12.192m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

(Corner castings must not be covered)

Width – n/a/n/a

Height – n/a/n/a

Max Gross Weight – 110231lb/50000kg

Tare Weight – 9920lb/4500kg

Max Cargo Weight – 100310lb/45500kg

Cubic Capacity – n/a/n/a

20ft Flat Rack

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 19ft 10in/6.0452m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

Length – 18ft 8in/5.690m

Width – 7ft 7in/2.30m

Height – 7ft 3in/2.210m

Width – n/a/n/a

Height – n/a/n/a

Max Gross Weight – 78396lb/35560kg

Tare Weight – 6217lb/2820kg

Max Cargo Weight – 72179lb/32740kg

Cubic Capacity – n/a/n/a

40ft Open Top

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 12,192 mm

Width – 2438 mm

Height – 2591 mm

Length – 12,032 mm

Width – 2352 mm

Height – 2348 mm

Width – 2340 mm

Height – 2280 mm

Width Between Top Rails – 2232 mm

Length Between Top Headers – 11,806 mm

Length Between Troughs– 11,531 mm

Max Gross Weight – 32,500 kg

Tare Weight – 3740 kg

Max Cargo Weight – 28.760 kg

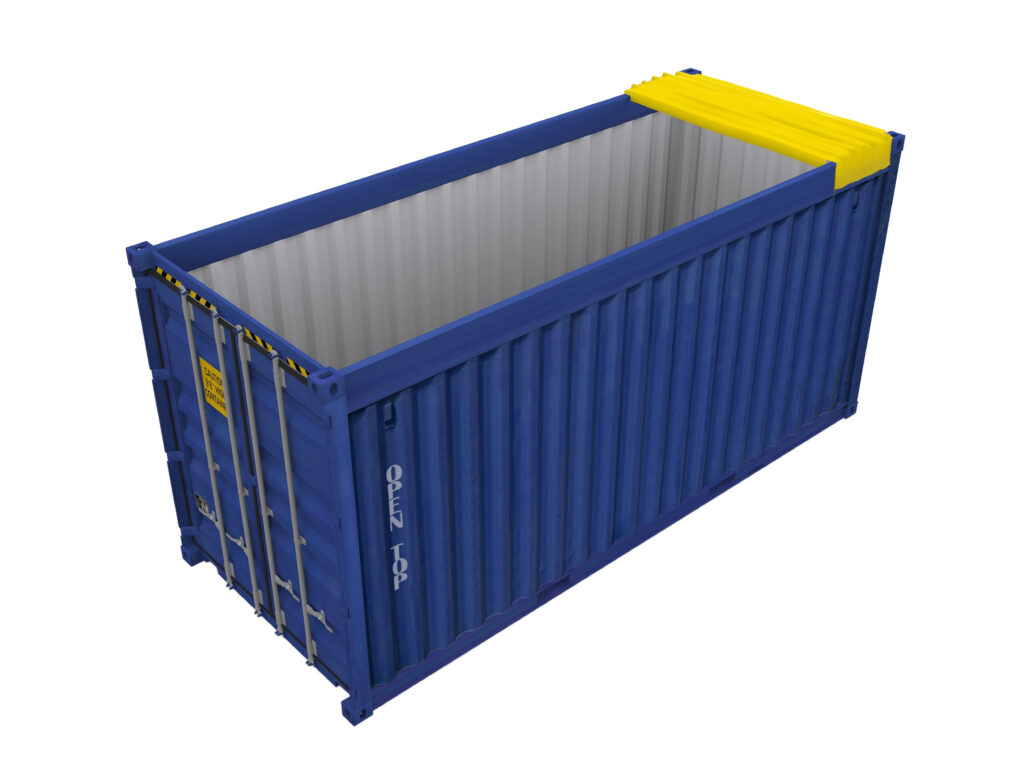

20ft Open Top

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 19ft 10in/6.0452m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

Length – 18ft 8in/5.682m

Width – 7ft 9in/2.352m

Height – 7ft 8in/2.348m

Width – 7ft 7.5in/2.324m

Height – 7ft 4in/2.235m

Max Gross Weight – 67197lb/30480kg

Tare Weight – 5181lb/2350kg

Max Cargo Weight – 62016lb/28130kg

Cubic Capacity – 1147.7cu.ft/32.5cu.m

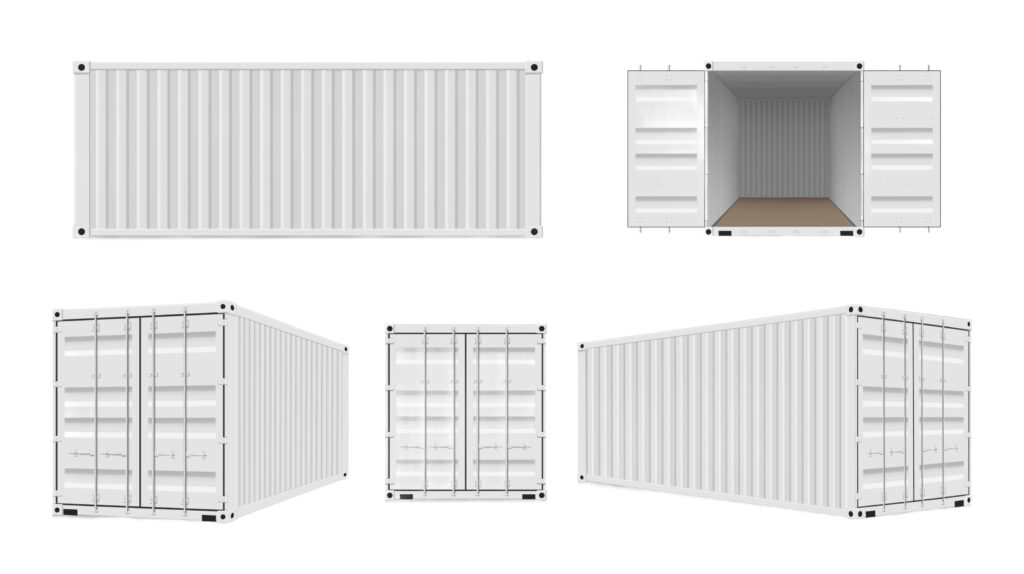

40ft Dry Van

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 40ft 0in/12.192m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

Length – 39ft 4in/11.989m

Width – 7ft 7in/2.35m

Height – 7ft 10in/2.390m

Width – 7ft 7in/2.34m

Height – 7ft 4in/2.235m

Max Gross Weight – 67197lb/30480kg

Tare Weight – 7782lb/3530kg

Max Cargo Weight – 59415lb/26950kg

Cubic Capacity – 2387.3cu.ft/67.6cu.m

20ft Dry Van

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 6058 mm

Width – 2438 mm

Height – 2591 mm

Length – 5898 mm

Width – 2352 mm

Height – 2393 mm

Width – 2340 mm

Height – 2280 mm

Max Gross Weight – 30,480 kg

Maximum Payload – 28,380 kg

Max Cargo Weight – 62347lb/28280kg

Cubic Capacity – 33.2 m^3

Lashing Rings – 10 per side

Lashing Bars – 4 per corner

20ft Reefer

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 19ft 10in/6.0452m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

Length – 17ft 10in/5.436m

Width – 7ft 6in/2.286m

Height – 7ft 4in/2.2731m

Width – 7ft 7.5in/2.324m

Height – 7ft 5in/2.261m

Max Gross Weight – 67197lb/30480kg

Tare Weight – 6790lb/3080kg

Max Cargo Weight – 60407lb/27400kg

Cubic Capacity – 1002.9cu.4ft/28.4cu.m

40ft High Cube Dry Van

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 12,192 mm

Width –  2438 mm

Height – 2896 mm

Length – 12, 032 mm

Width –2352 mm

Height – 2698 mm

Width – 2340 mm

Height – 2585 mm

Max Gross Weight – 32,500 kg

Max Payload Weight – 28,800 kg

Tare Weight – 3700 kg

Cubic Capacity – 76.4 m^3

Lashing Rings – 20 per side

Lashing Bars– 5 per corner

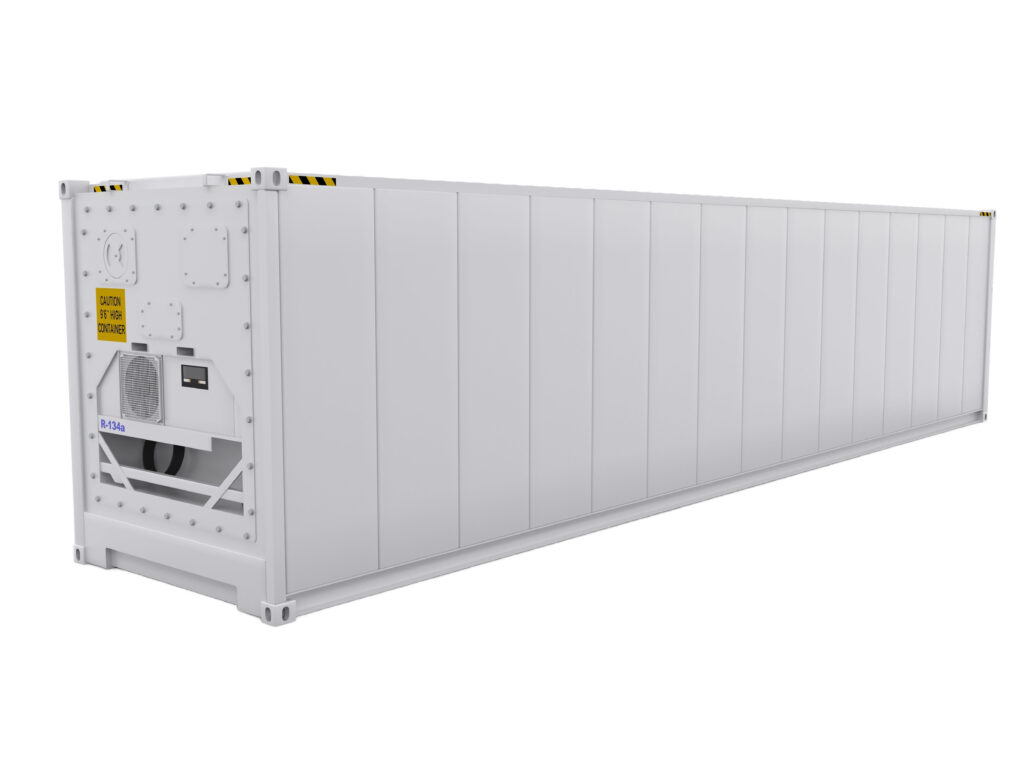

40ft High Cube Reefer

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 12,192 mm

Width – 2438 mm

Height – 2896 mm

Length – 11,588 mm

Width – 2288 mm

Height – 2544 mm

Width – 2290 mm

Height – 2569 mm

Max Gross Weight – 35,000 kg

Tare Weight – 4660 kg

Max Payload Weight – 30,340 kg

Cubic Capacity – 67.5 m^3

20ft High Cube Reefer

Container dimensions provided are intended as a guide and may vary slightly depending on the specific make of container.  Please contact us to confirm dimensions before shipping.

Length – 19ft 10in/6.0452m

Width – 8ft 0in/2.438m

Height – 8ft 6in/2.591m

Length – 19ft 4in/5.892m

Width – 7ft 7in/2.35m

Height – 7ft 10in/2.390m

Width – 7ft 7in/2.34m

Height – 7ft 4in/2.235m

Max Gross Weight – 67197lb/30480kg

Tare Weight – 4850lb/2200kg

Max Cargo Weight – 62347lb/28280kg

Cubic Capacity – 1172.cu.4ft/33.2cu.m
